Compact. Mobile. Powerful.

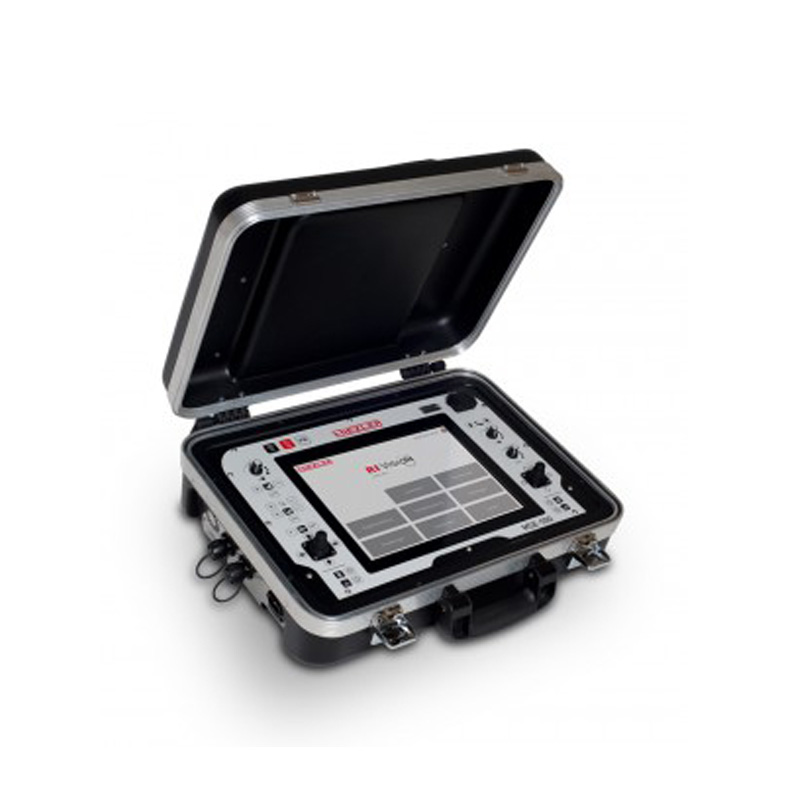

Our professional control case MSE-500 – Your central control and documentation unit for all our cameras and crawlers.
The high resolution and daylight suitable 12,4 inch TFT display provides brillant picture quality and together with the ergonomically located controls allows a pleasant work
Via the existing USB ports devices such as keyboard or mouse can be used with the control case
Videos and pictures are saved on the internal memory and can be easily exported to an USB device
The specially-designed, innovative software RiVision allows the creation of documentaries at the customers side and is monitoring important informations of our inspection systems.
Software for videos and photos
Color data display with touchscreen keyboard
Adaptable to your needs, by example the choice of desired overlays, their position, colors, etc. ... Possible overlays: Recording time, date, date and time, pressure crawler, pressure camera, company name, company logo, meter counter, longitudinal gradient, transverse gradient, location, rotation °, meter counting, inclination value, swivel °, street, from --> to
Project and contact management
Text database
Easy capture of observations
Surveillance monitoring such as internal pressure, temperature, tension etc. ... of the connected hardware
Snapshots feature
Export of recorded data to an USB device. The data export of the RiVision software is compatible with WinCan v8 and can easily be imported and processed
Article number: 5-0028-001
Weight: ca. 10 kg / 22 lbs
Size: 490 x 380 x 290 mm / 19,2 x 14,9 x 11,4 inch (L x W x H)
Power supply: 100 - 240 V AC
