Data sheet

EE33-M

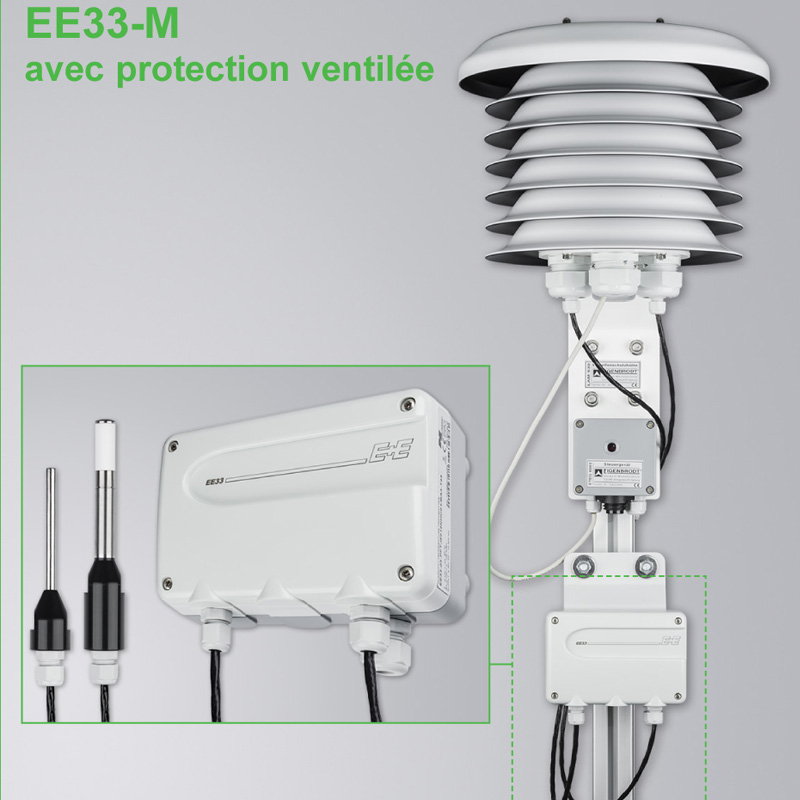

The EE33-M is optimized for reliable measurements in severe weather conditions. In addition to accurate measurements of relative humidity (RH) and temperature (T), the device calculates all additional physical parameters such as dew point, absolute humidity and mixing ratio.

A dual heating system prevents the formation of condensation on the humidity sensor, on the probe and on the filter, which allows a very short response time and rapid recovery in conditions close to condensation.

The measuring principle with separate humidity and temperature probes allows accurate continuous measurement even in high humidity.

The protective coating E + E preserves the sensor from corrosive and electrically conductive pollution. The probes are compatible with modern ventilated radiation protections such as the LAM630.

With an optional connection cable and the EE-PCS configuration software (included in standard delivery) the user can easily adjust and reconfigure the outputs

  • Metrology

  • Wind turbines

  • Prevention of frost on roads

  • Offshore measurements

  • Monolithic HR sensor

  • Precise measurements even close to condensation

  • Prevention of condensation thanks to double heating

  • Protection against pollution and corrosion

  • Calculation of additional physical quantities
