MMC is the world's leading manufacturer of portable instruments for measuring ullage, oil-water interface, temperature, and bottom dryness in shipboard and land-based petroleum and chemical tank systems.
All MMC systems are manufactured in the United States and are certified as intrinsically safe by Factory Mutual, SIRA/BASEEFA and CSA.

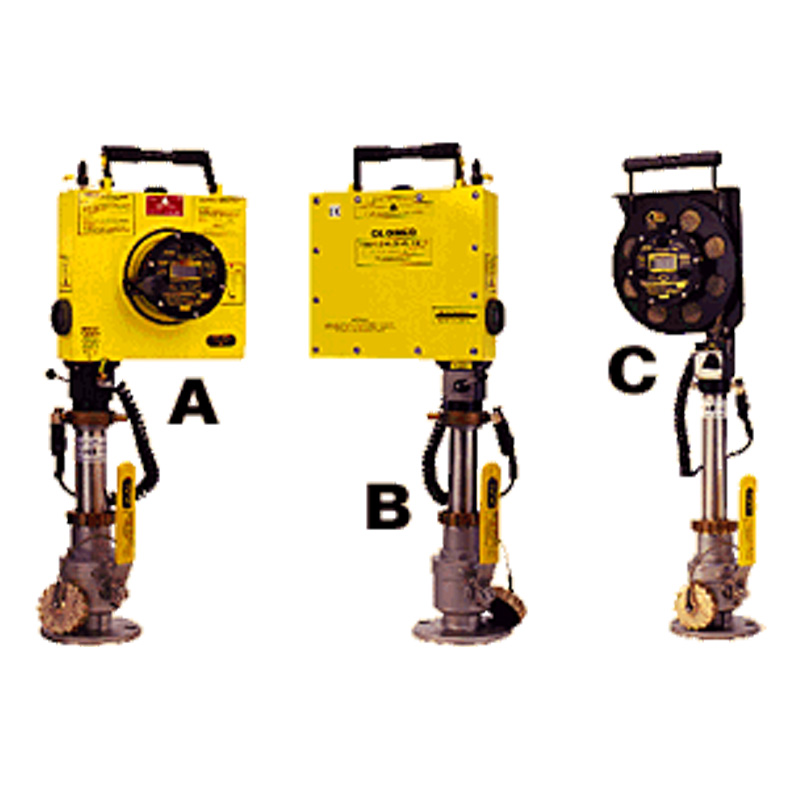

The Portable Closed Flexi-Dip measuring tape is a battery-operated electronic unit that is totally gas-tight.
When installed in a vapor-control valve mounted on a storage (cargo) tank, it forms a tightly sealed system that prevents toxic vapors from escaping and creates a closed gauging system for that tank.
The tape is marked in metric or english units and is anti-static coated (as is the sensor). In addition, the tape is color marked to make tape direction and motion easily seen and to ensure full rewind position.
A coiled grounding cable with large alligator clip is standard.
This closed system is recognized by many worldwide regulatory bodies as equivalent to a fixed gauging system as long as the tape remains in the valve from the beginning until the end of loading or discharging of the tank.
Accuracy:
of Tape Reading: Fluid level +/- 1/8 inch (3mm), +/- 0.01%
of F.S. tape LGT (F.S. = Full Scale). of Temperature Display: +/- 0.5° F (+/- 0.2° C), +/- 1 digit error.
Ambient Temperature Limits: -20° F (-7° C) to 120° F (49° C).
Product Temperature Limits: -40° F (-40° C) to 190° F (88° C).
Battery: 9-Volt Duracell MN1604.
Tape Lengths: 50 ft. (15m), 65 ft. (20m), 75 ft. (25m), 100 ft. (30m), 35m.
Typical Weights: 14 lbs. (6.4 KG).
Pressure Limits: 3 psi working, 7.5 psi maximum.
Approvals: Intrinsically safe--FM, BASEEFA, CSA, NKK (Japan).
