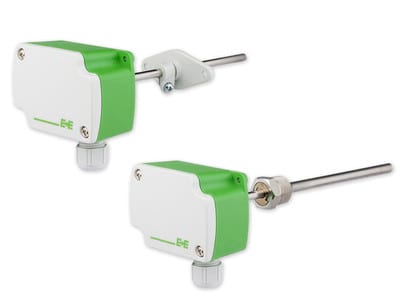

The EE431 temperature sensor is used for airtemperature measurement in heating, ventilation and air conditioning systems. It can be installed either with mounting flange or via external mounting holes at the enclosure (duct sensor).
For temperature measurement in liquids the temperature sensor EE431 is mounted with an immersion well (immersion sensor). In addition to active outputs 0-10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement. The innovative IP65 housing and the mounting concept allow for fast and easy installation.
Encloser:
External mounting holes
Bayonet screws
Mounting flange:
Fixation via clamping
Special sealing
Immersion well:
Innovative mounting spring
Typical Applications:
Building automation
Process and climate control
Measurement in air and liquids
|
MEASURING RANGE PASSIVE OUTPUT |
-40…110 °C (-40...230 °F) -40…150 °C (-40...302 °F) (Pt and Ni T-sensors) |
|
T-SENSOR CONNECTION |
two-wire |
|
MEASURING RANGE ACTIVE OUTPUT |
-40...110 °C (-40...230 °F) duct sensor -40...150 °C (-40...302 °F) immersion sensor |
|
ACCURACY ACTIVE OUTPUT |
±0.3 °C (±0.54 °F) |
|
WORKING TEMPERATURE ELECTRONICS |
-40...70 °C (-40...158 °F) |
|
PROTECTION CLASS |
IP65 / NEMA 4 |
|
OUTPUTS |
0-10 V or 4-20 mA |
|
POWER |
24 V AC/DC |
