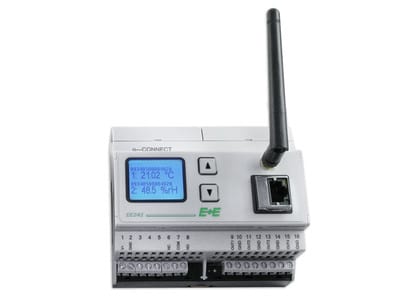

EE242 is the base station for a network of up to 500 wireless transmitters for temperature, humidity and CO2.
With the integrated web server (no need for any additional software) the user can set up the wireless network via Ethernet interface.
The measured data from the transmitters is available at EE242 also on Modbus RTU and TCP/IP.
Four of the measured paramentrs can be selectr for the analogue outputs of EE242.
Base station for up to 500 wireless transmitters
Setup of the wireless web server
Ethernet interface
Modbus RTU and TCP/IP
4 analogue outputs
4-line display
DIN rail mounting
TRANSMISSION FREQUENCY |
2.4 GHz |
TRANSMISSION PROTOCOL |
IEE 802.15.4 |
TRANSMISSION POWER |
10mW |
RANGE |
1000m in open field |
OUTPUTS |
Analogue, Ethernet, Modbus |
