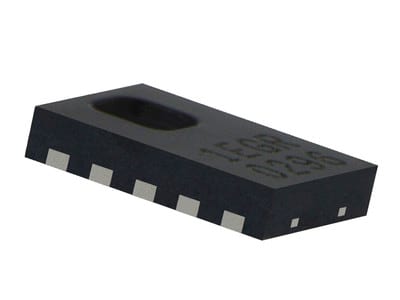

EEH210

Well proven humidity sensor element, state-of-the-art ASIC technology and highly accurate humidity and temperature adjustment represent the basis for outstanding performance of the digital humidity and temperature sensor EEH210.

The proprietary E+E coating protects the active sensor surface against dirt and corrosion, which leads to excellent long-term stability even in polluted environment.

Precise humidity and temperature factory adjustment ensures a high accuracy of ±2% RH and ±0.3 °C (±0.54 °F). The measured values are available on I2C, PWM, PDM and SPIdigital interfaces.

The 3 V supply voltage increases the versatility of the digital humidity and temperature sensor. With very small dimensions, the sensor can also be used in applications with space restrictions.
