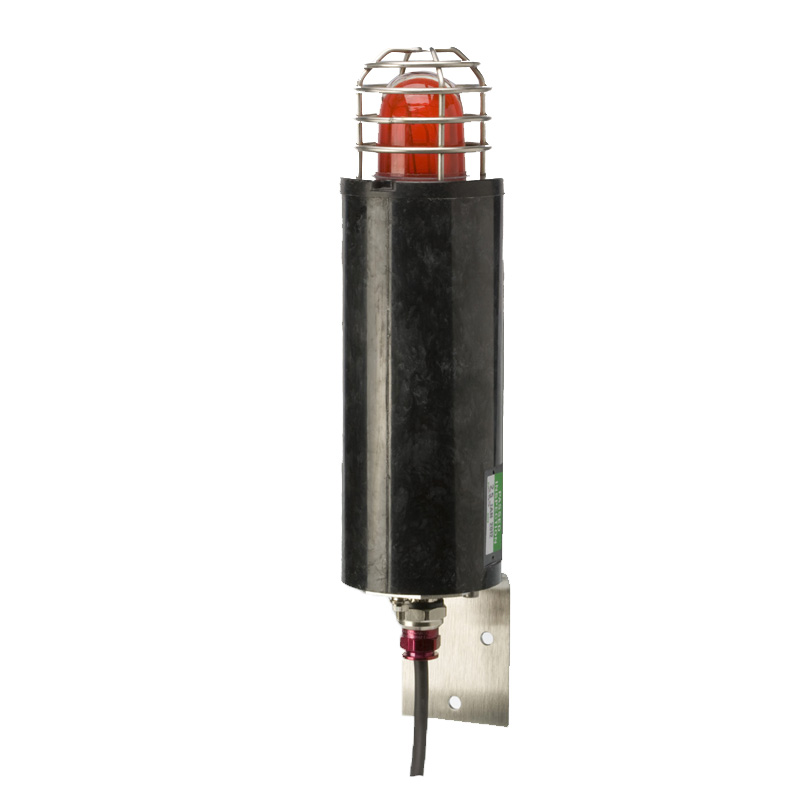

These compact and lightweight beacons have been designed for use in potentially explosive atmospheres and harsh environmental conditions.
The beacon housing, including the flamepaths, is manufactured completely from a UV stable glass reinforced polyester which is ideally suited for use offshore and onshore.
Stainless Steel screws and mounting bracket are incorporated ensuring a totally corrosion free unit.
Units can be painted to customer specification and supplied with identification labels.
Zone 1 and Zone 2 use.
Ex d IIC T5/T6.
ATEX approved, Ex II 2G.
IECEx certified Gb.
CUTR certified.
Chinese (CQST) certified.
Brazilian (Inmetro) certified.
IP66 and IP67.
Certified Temperature: –55ºC to +55ºC.
Corrosion Free GRP.
Various lens colours.
Lens guard fitted as standard.
Optional gland plus cable tail.
Stainless steel mounting bracket & screws.
Replaceable tube.
ATEX Ex d:
Cert. no. Baseefa 04ATEX2031.
Certified to: EN60079-0, EN60079-1.
Ex II 2G, Ex d IIC T5/T6 Gb.
IECEx Ex d:
Cert. no. IECEx BAS 10.0113.
Certified to: IEC60079-0, IEC60079-1.
Ex d IIC T5/T6 Gb.
CUTR Ex d:
1Ex d IIC T5/T6 Gb.
Inmetro Ex d:
Ex d IIC T5/T6 Gb.
