EE210 Outdoor is optimized for outdoor and meteorological applications. In addition to precise measurement of relative humidity and temperature, the transmitter calculates additional parameters such as dew point, frost point or specific enthalpy.
With encapsulated measurement electronics inside the sensing probe and E+E proprietary coating protection of the humidity sensor, the transmitter can be used even in harsh environment.

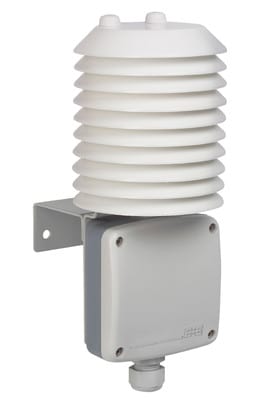

The optional radiation shield HA010501 protects the sensor from solar radiation and precipitation. The natural ventilation ensures a short response time.
High accuracy
Excellent long-term stability
Outstanding temperature compensation
Very robust sensing head
Proprietary sensor coating
Encapsulated measurement electronics
IP 65 enclosure
Optimum protection against pollution and condensation
Freely configurable analogue current or voltage outputs
1 or 2 point adjustment possibility for humidity and temperature
Optional radiation shield for wall or mast mounting
Easy installation
Calculated physical quantities
|
MEASURING RANGE HUMIDITY |
0...100 % RH |
|
ACCURACY HUMIDITY |
-15...40 °C <90%RH ±(1.6+0.005*mv) %RH -15...40 °C >90 %RH ±3 %RH -40...60 °C ±(2.3+0.008*mv) %RH |
|
MEASURING RANGE TEMPERATURE |
-40...60 °C (-40...140 °F) |
|
ACCURACY TEMPERATURE |
±0.2 °C (±0.36 °F) at 20°C |
|
ANALOGUE OUTPUTS |
0-10 V or 4-20 mA |
|
POWER |
24 V AC/DC |
