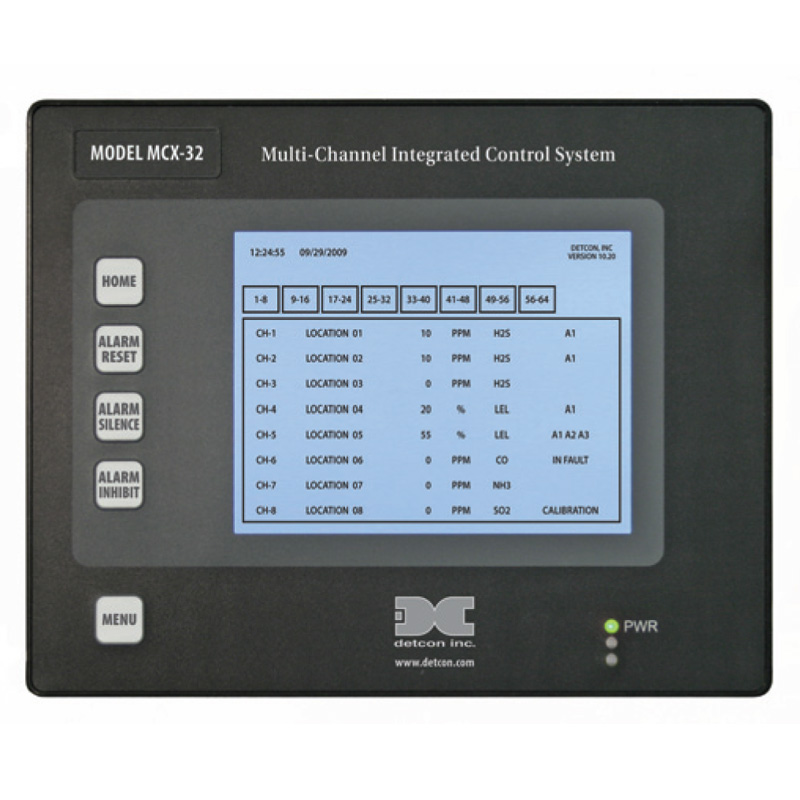

Detcon Model MCX-32 is a multi-channel integrated control system with a capacity of 64 active channels.
It can receive and supervise inputs from a wide range of field devices with either a 4-20mA DC or serial output. The standard serial protocol is RS-485 Modbus RTU.
This unique system design features “auto-configuration” of addressable devices that are located in a device library.
The Model MCX-32 controller provides a unique combination of “auto configuration” simplicity and ease of use with customizable expansion capabilities.
The Model MCX-32 controller features a flexible design that allows the user to customize a system by choosing from a selection of individually addressable field devices or use addressable input and output modules.
Detcon’s full range of gas sensors (purchased separately) can be used to create a gas detection system consisting of toxic gas, combustible gas, and/or oxygen deficiency.
A wide range of field devices such as liquid level, temperature, pressure, flow, etc., can also be configured for input to the control system.
Four standard I/O modules are available: a 4-channel 4-20mA input module (DA-4), a 4-alarm relay output module (RL-4), a 4-channel 4-20mA output module (AO-4), and a 4-relay contact input module (DI-4).
I/O modules are din-rail mounted and stackable allowing for seamless system expansion.
The I/O modules may be mounted within the main system enclosure or in separate enclosures suitable for the area classification where installation will occur.
In many cases using distributed I/O nodes can significantly reduce wiring and installation costs...
64 channel capacity
Large LCD with touch-screen user interface
Analog, digital or Modbus RTU serial input capability
Readily field expandable with auto configuration capability
Versatile distributed I/O installation options
Lightning & over-voltage protection standard
Data logging of alarms, calibration, comm errors, faults, peak and average readings
Capacity
User configurable:
up to 64 analog or serial inputs
Inputs
Analog 4-20 mA (using DA-4 Modules)
RS-485 Modbus™ RTU
Outputs
User Configurable:
4-20 mA outputs (using AO-4 Modules)
Form “C” Relay Contacts (using RL-4 Modules)
RS-485 Modbus™ RTU slave ports
Form “C” relay outputs for Fault and No Comm
Accuracy/Repeatability
Display: < 1% F.S.
DA-4: < 1% F.S.
AO-4: < 1% F.S.
Power Input
110-230 VAC; 20-30 VDC
Power Consumption
Base MCX-32 Controller: 14 Watts @ 24 VDC
Total power dependent on:
Number of I/O Modules
Number of Gas Sensors not to exceed 80 watts
