Detcon Model X40 is a low power alarm and control system designed to monitor multiple gas detection sensors and/or a wide range of other field devices.
The versatile control system is designed to receive and supervise inputs using either 4-20mA DC or Serial RS-485 Modbus™ and is available in two packages: Model X40-8 and Model X40-32.
Both packages function as a Modbus™ Master and can be customized and expanded based on individual application needs using Detcon’s stackable din-rail mounted I/O modules.
All I/O modules are individually addressable and operate on 11.5- 30VDC. The X40-8 provides power for up to eight field devices and can house up to six 4-channel I/O modules.
The X40-32 provides power for up to 32 field devices and can house up to 12 4-channel I/O modules.
Detcon I/O modules available for use with the Model X40 include a 4-channel 4-20mA input module (DA-4), a 4-alarm relay output module (RL-4), a 4-channel 4-20mA output module (AO-4), and a 4-relay contact input module (DI-4).
Detcon modules can be mounted within the main system enclosure or installed remotely to simplify field wiring.
The Model X40 is completely field programmable using a small handheld magnet and offers advanced technology with intuitive, embedded intelligence. The control system displays real time readings and field device status on a backlit LCD screen.
During normal operation the screen displays the alarm status and current reading (i.e., channel number, gas type, and gas concentration) for up to 8 field devices simultaneously.
The display is sequential and during normal operation it auto cycles through each of the active channel screens.

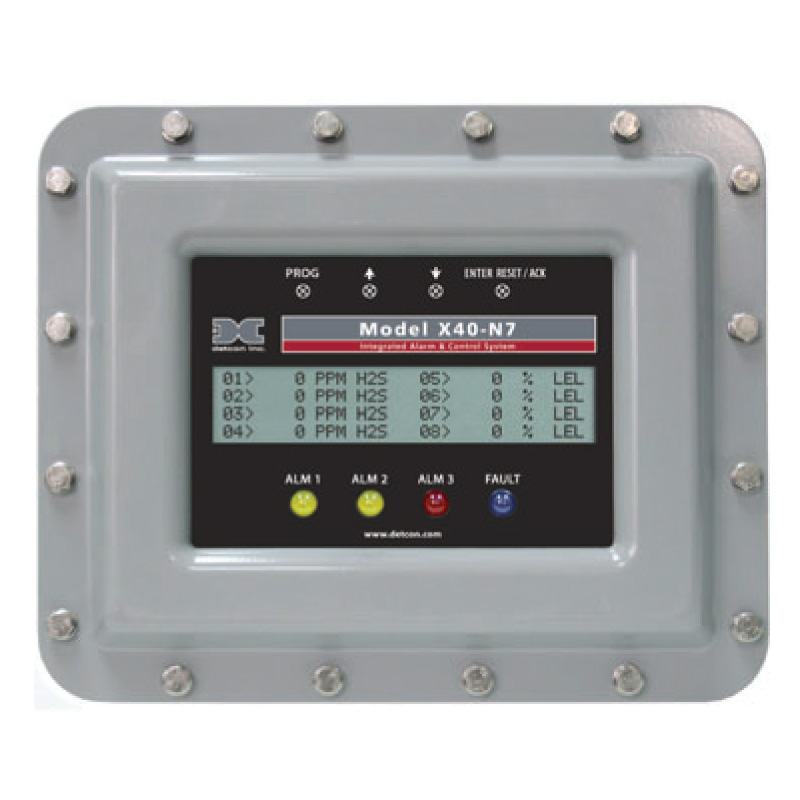

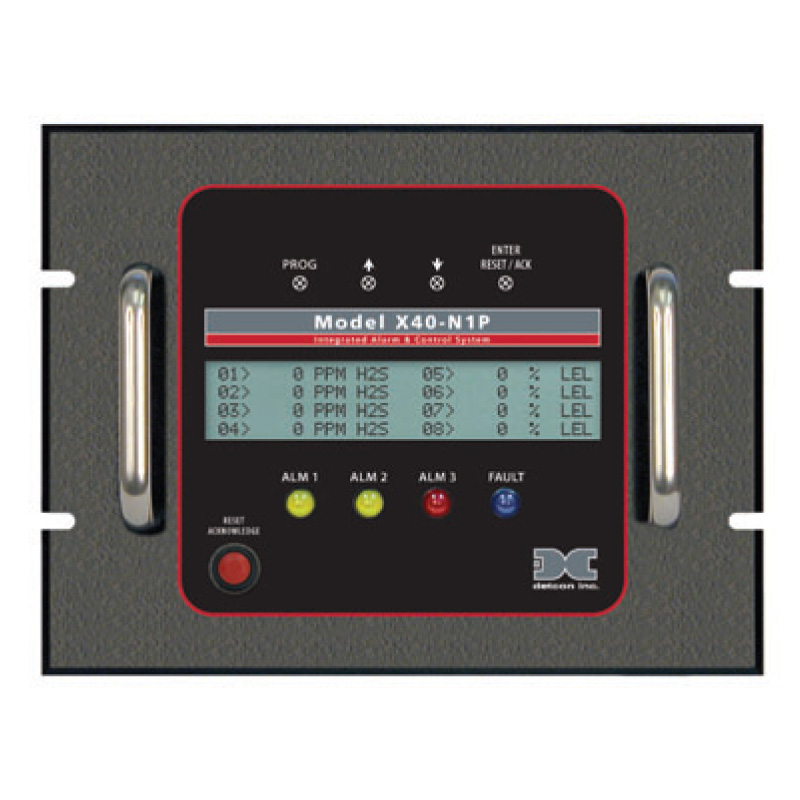

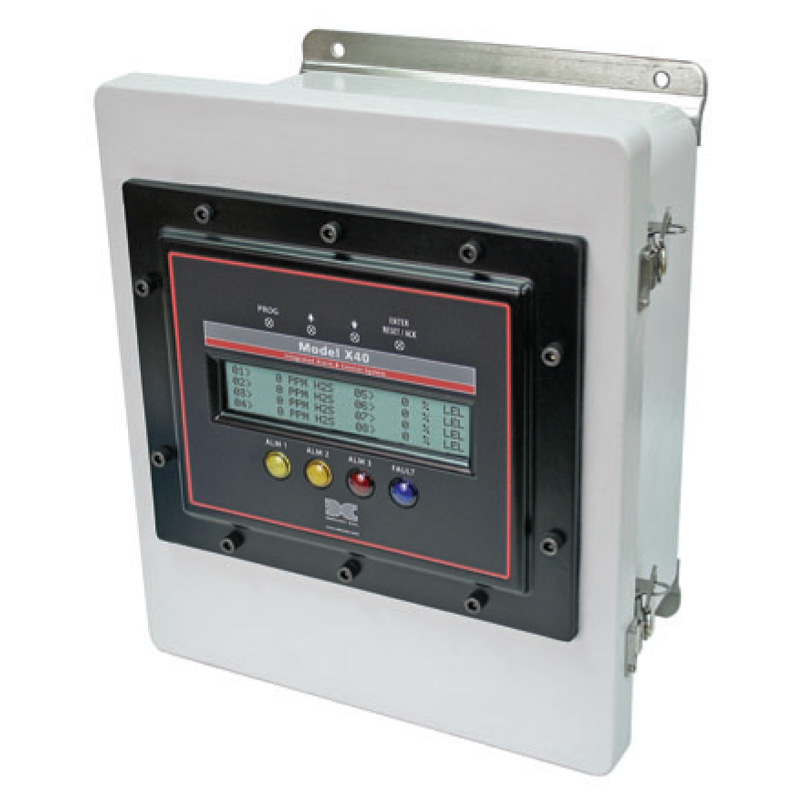

Among the system’s unique features is a wireless option that can be used with Detcon’s RXT-320 SmartWireless® transceivers. Enclosure options include: NEMA 4X, NEMA 1 panel mount, and NEMA 7.
8 to 32 Channel Capacity
Backlit LCD Screen Display
Analog or RS-485 Input Options
Easy Intuitive Field Configuration
Wired or Distributed I/O
Extensive Event Data Logging
SmartWireless® Capable
Oil and Gas Drilling Rigs
Oil and Gas Production Sites
Offshore Production Platforms
Wastewater Treatment Plants
Food and Beverage Processing
Pulp and Paper Mills
Refining and Petrochemical
