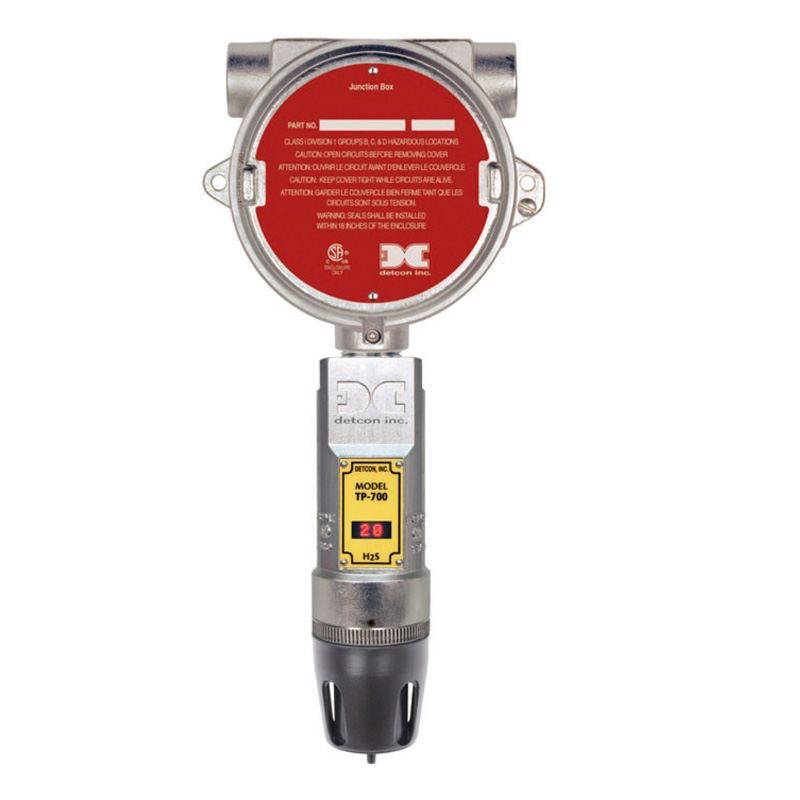

Detcon The TP-700 is a non-intrusive "smart" sensor designed to detect and monitor H2S in the air over a range of 0 to 100 ppm using state-of-the-art metal oxide semiconductor technology. solid.
The plug-in, field-replaceable sensor features oversized gold-plated connections that help prevent corrosion.
The TP-700's rugged frame includes an electrolytically polished 316 stainless steel case with fully encapsulated electronics and double-layer surge protection. This innovative design virtually eliminates sensor failure due to water infiltration, corrosion, vibration and transient spikes.
A key feature of the TP-700 is a built-in intuitive software that simplifies the operator interface by guiding the user through the usual calibration, configuration, and troubleshooting functions using a integrated alphanumeric display.
The TP-700 is equipped with standard 4-20 mA analog outputs and Modbus ™ RS-485 outputs. Among its unique features, a wireless option can be used with the Detcon SmartWireless® product line.
Additional integration options include a Remote Alarm Module (RAM), HART, and Foundation Fieldbus. Detcon's MOS H2S Solid State Gas Detector has an infinite lifetime and is backed by a 10-year conditional warranty.
Failsafe user-friendly interface
LED display (with anti-glare
Full-text display method
Non intrusive interface
Auto Zero / Auto Span
Preventive diagnosis of defects
Eco-friendly bulletproof
Electropolished 316SS construction
Circuits encapsulated with 100% epoxy
Bulletproof I / O protection
Waterproof, corrosion resistant, vibration resistant
Modular and repairable
Modular design
Plug and Play Components
Quick release of the thread (for sensor replacement)
Built-in calibration port
Oil and gas drilling rigs
Oil and gas production sites
Refining and petrochemicals
Pulp and paper mills
Wastewater treatment plants
