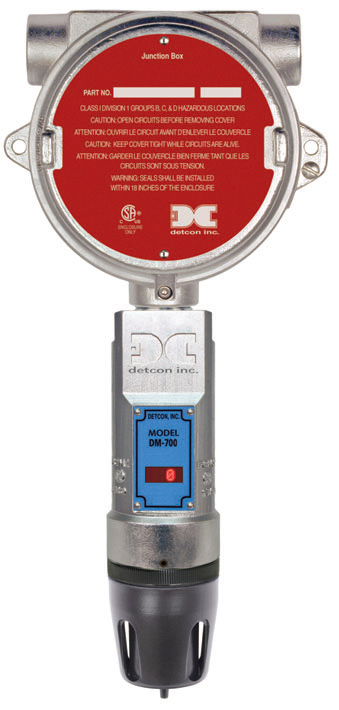

The Detcon Model DM-700-B2H6 is a non-intrusive "smart" sensor designed to detect and monitor Diborane in air over a range of 0-5 ppm using electrochemical sensor technology.
The field-replaceable, smart plug-in cell provides automatic recognition of the type and range of gases, and features oversized gold-plated connections that help prevent corrosion.
The sturdy frame of the 700 model features an intrinsically safe, polished 316 stainless steel case with fully encapsulated electronics and double-layer surge protection. This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration and transient spikes.
A key feature of the Model 700 is an intuitive, built-in software that simplifies the operator interface by guiding the user through the usual calibration, configuration, and troubleshooting functions using an alphanumeric display integrated.
The Model 700 is equipped with standard 4-20 mA analog outputs and Modbus ™ RS-485 outputs. Among its unique features, a wireless option can be used with the Detcon SmartWireless® product line.
Additional integration options include a Remote Alarm Module (RAM), HART, and Foundation Fieldbus. Detcon's toxic gas detectors have a long service life and are backed by a first-class warranty.
Failsafe user-friendly interface
LED display (with anti-glare)
Full-text display method
Non intrusive interface
Auto Zero / Auto Span
Preventive diagnosis of defects
Eco-friendly bulletproof
Electropolished 316SS construction
Circuits encapsulated with 100% epoxy
Bulletproof I / O protection
Waterproof, corrosion resistant, vibration resistant
Modular and repairable
Modular design
Plug and Play Components
Quick release of the thread (for sensor replacement)
Built-in calibration port
Sensor type |
Continuous diffusion / adsorption Electrochemical cell with 3 electrodes Smart type replaceable plug-in |
Measuring range |
0-5 ppm, Other ranges available |
Precision / Repeatability |
±2% FS |
Response / compensation time |
T90 <60 seconds |
Span Drift |
<5% signal loss per month |
Outputs |
Linear 4-20 mA DC RS-485 MODBUS-RTU |
