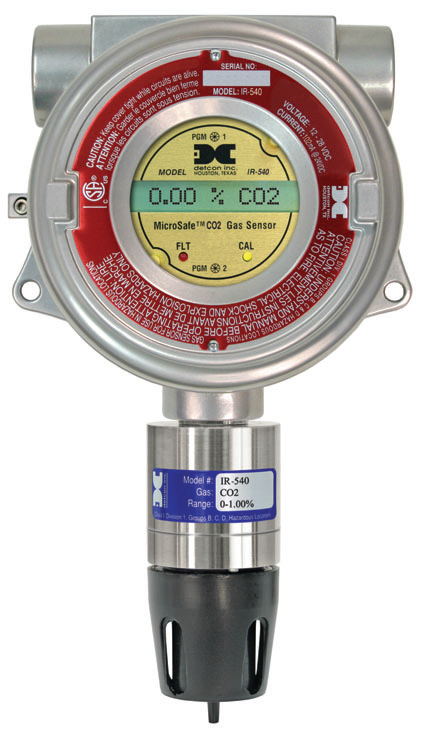

Detcon Model IR-540 Detectors are non-intrusive "smart" sensors designed to detect and monitor carbon dioxide.
The available detection ranges are 0-0.3%, 0-1%, 0-3% and 0-5% by volume.
The sensor assembly consists of a miniature infrared optical sensor in a stainless steel housing that includes a splash guard with integral cal port, a pluggable control emitter circuit, a basic connection board and an explosion-proof enclosure.
CSA and UL Listed: Class I, Division 1, Groups B, C and D
Simple Menu Driven Calibration - takes less than 3 minutes
Backlit LCD and LED indicators for FAULT and CAL status
Field replaceable miniature optical sensor
Pluggable field replaceable transmitter
Low energy consumption
Expected life of the 5 year sensor
|
Sensor type |
Non-dispersive infrared optics (NDIR) |
|
Measuring range |
0 - 0.3% / 0 - 1% / 0 - 3% / 0 - 5% by volume |
|
Precision / Repeatability |
± 5% FS |
|
Response / compensation time |
T50 <15 seconds T90 <40 seconds |
|
Zero drift |
<0.05% per year |
|
Operating temperature range |
-40 ° F to + 167 ° F; -40 ° C to + 75 ° C |
|
Operating humidity range |
0-99% RH without condensation |
|
Outputs |
Linear 4-20 mA DC |
|
Input voltage |
11.5-28 VDC |
|
Energy consumption |
<2 watts @ 24 VDC |
|
Electrical classification |
Explosion Class I, Division 1, Groups B, C, D |
|
Safety Approvals |
CSA / NRTL (US OSHA certified) |
|
Protection against penetration |
NEMA 4X, IP66 |
